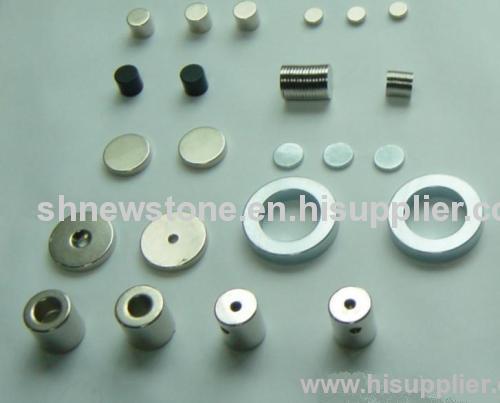

NdFeB Ring Magnets

NdFeB rings are sometimes also known as discs with central holes.

The NdFeB Rings exits in two styles – 'pure' rings and 'countersunk' rings. The holes are centrally located.

The countersunk ring allows for the magnet to be screwed onto another item such that the screw is flush with the magnet end face. The countersink is only on one side of the ring magnet so the A version has the countersunk end as a North Pole and the B version has the countersunk end as a South Pole. If the countersunk ring is to clamp onto ferromagnetic material then either the A or B version can be used. If two rings are to attract to each other such that the countersunk faces are attracted, one ring has to be an A version and the other a B version (unlike Poles attract).

Due to their shape, the ring magnets have a higher permeance coefficient than a same-sized disc magnet. This means they can resist demagnetization better, making them ideal for repulsive applications.

Tips:
In order to quote you the best price quickly. Please provide the following information.

1. Product size

2. Order quantity

3. Custom artwork design

4. Packing request if need to be personalized

5. Please advise in advance if your order is urgent

6. Other requirements

Your early inquiry to us at shnewstone at gmail dot com will be highly appreciated
